In the demanding world of industrial operations, the reliability of components such as ball valves is paramount. With over 100 years of experience, KLINGER Fluid Control offers a range of ball valves that combine innovative design with superior functionality, to ensure optimal performance in a wide variety of applications.
Engineered for Performance and Safety
Shut-off valves such as KLINGER Fluid Control’s ball valves exemplify the fusion of innovative design and robust engineering. Their superior performance characteristics make them a reliable choice for engineers seeking quality and efficiency in their operations. KLINGER Fluid Control ball valves are designed to ensure:
- Bidirectional sealing: tightness in both flow directions, compliant with EN 12266 – 1, leakage rate A.
- Maintenance-free operation: reducing downtime and operational costs.
- High-temperature and pressure resistance: suitable for applications ranging from -196 °C to +400 °C and pressures up to PN 100.
- Compliance with international standards: including API 607, ISO 10497, and EN ISO 15848-1.
Comparison of ball valves
KLINGER Fluid Control offers a diverse portfolio of ball valves designed to meet various industrial requirements:
| Type | DN | PN | Temperature | Design | Connections | Sealing | Features |
|---|---|---|---|---|---|---|---|
| Ballostar KHA | DN 15-125 | PN16/25/40/63/100 | -196 °C to +400 °C | 3-piece | Flange, threaded connection, welding ends | Bidirectional sealing | For applications requiring full bore and modular system components |
| Ballostar KHA DBB | DN 15-125 | PN16/25/40/63/100 | -196 °C to +400 °C | 3-piece | Flange, threaded connection, welding ends | Two elastic sealing elements | Double Block and Bleed (DBB) system, enhancing safety during maintenance operations, ASME CL ½” – 5” |
| Ballostar KHI | DN 150-1000 (KHSVI VVS up to DN 800) | PN16/25/40 | -45 °C to +260 °C | 2-piece (opt. fully welded) | Flange, welding ends | Bidirectional sealing | Designed for high-pressure applications, maintenance-free, EN 488-2019 standards |
| Ballostar KHI-F | DN 150-400 | PN10/16/25/40 | -45 °C to +250 °C (depending on O-ring material) | 2-piece | Flange | Metal or soft seated | Flexible construction, Fire-Safe certified, EN ISO 15848-1 |
| Ballostar KHE | DN 15-200 ½” – 8” | PN16/40 Class 150 | -60 °C to +300 °C | 2-piece | Flange | Leakage rate A (EN 12266-1) | For oxygen and natural gas, EN14141 & EN13774 standards |
| Monoball KHO | DN 15-250 | PN16/40 | -5 °C to +200 °C | One piece, fully welded | Flange, threaded connection, welding ends | Elastically pre-stressed sealing elements | District heating and plant construction, EN 488:2019 & EHP003 certified |
| Monoball KHO-U | DN 25-250 | PN25 | -5 °C to +200 °C | One piece, fully welded | Welding ends | Durable stem seal | For underground solutions, EN 488:2019 & EHP003 certified |
Versatile Applications Across Industries
KLINGER Fluid Control ball valves are used in various sectors, including:
- Power generation: handling hot water, steam, and heat transfer oils
- Oil and Gas: handling hydrocarbons, fuels, and gases
- Chemical processing: resisting acids, bases, and other chemical solutions
- Pulp and Paper: controlling dye liquor and digester liquor
- Steel industry: handling of highly demanding solids-loaded liquids and gases
- Geothermal: geothermal water consists of solids, can be abrasive and corrosive and has the property of crystallizing

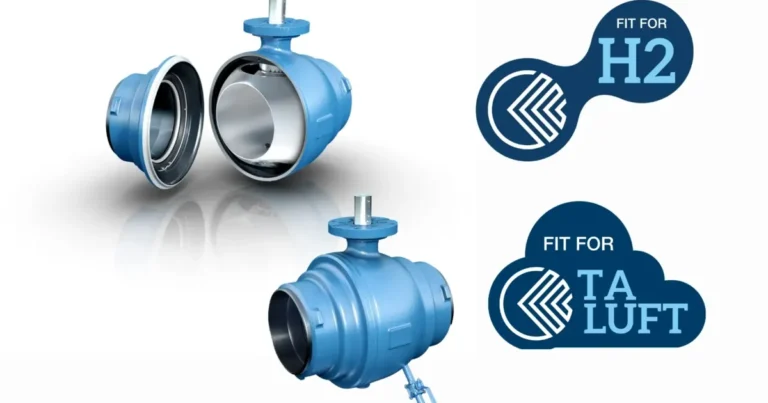

- Hydrogen: for transportation and production (pyrolysis), penetration of H2 into metals could cause blistering and embrittlement
Frequently asked questions (FAQ)
What makes KLINGER Fluid Control’s ball valves easily distinguishable?
Their ball valves feature a unique design that allows for immediate visual identification, reflecting their precision engineering and quality.
Are ball valves suitable for high-temperature applications?
Yes, KLINGER Fluid Control’s certain models are designed to operate in temperatures ranging from -196 °C to +400 °C, making them suitable for various high-temperature environments.
Do ball valves comply with international safety standards?
Absolutely. KLINGER Fluid Control’s ball valves meet several international standards, including EN 12266, API 607, ISO 10497, and EN ISO 15848-1, ensuring safety and reliability.
